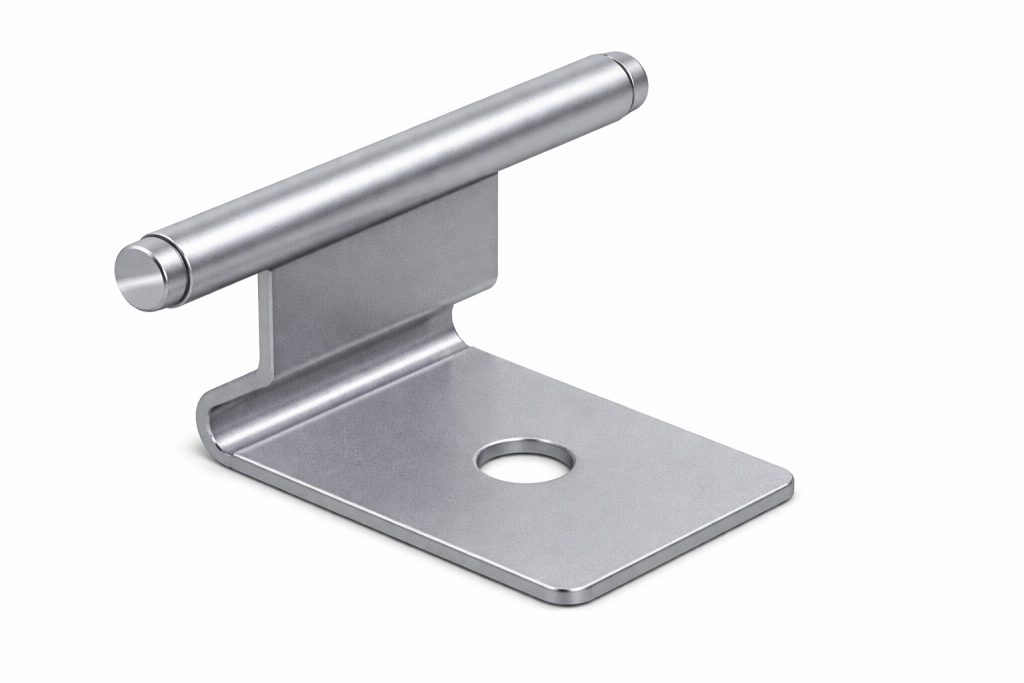

The Intermediate Bracket is made from Stainless Steel 304, designed for durability and corrosion resistance. It follows EN 795 standards with key dimensions of 85mm length and 40mm width. The material density is 8.03 g/cm³ and includes a brass wire-locking pin.
It withstands static loads up to 6 kN, has joint strength of 25.96 kN, and breaking strength of 25.23 kN. The product is resistant to weathering, chemicals, impact, and operates in temperatures down to –60°C. Expected durability is 10 years, with no visible defects and a weight of 0.2–0.3 kg.
The Anchor Post is made from Stainless Steel 304 with a 300mm × 300mm size and M12 right‑hand threads. It meets EN 795 standards and has a material density of 8.03 g/cm³, with a brass wire‑locking pin.
It offers high strength and safety, including static load resistance and joint strength of 23.64 kN and a breaking strength of 28.23 kN. The product is corrosion‑resistant, anti‑impact, chemical‑resistant, weather‑resistant (down to –60°C), and durable for 10 years. Weight ranges from 2.5 to 3.5 kg, with no visible defects.

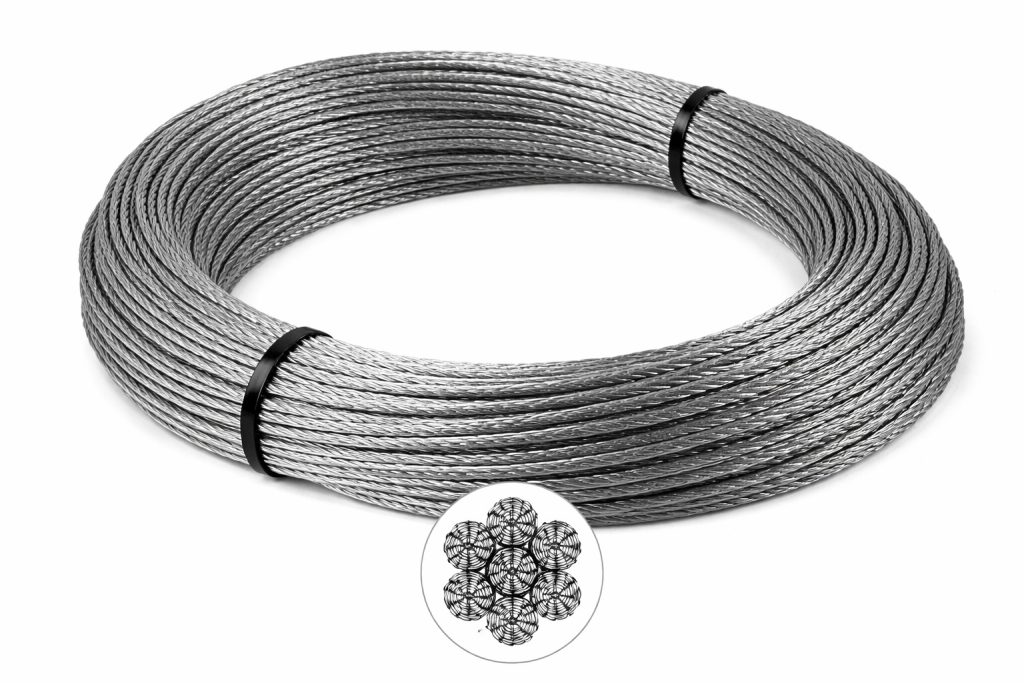

The SS Wire Rope is manufactured using Stainless Steel 304 with a diameter of 8 mm and a 7×19 construction. It meets EN 795 standards and has a material density of 8.03 g/cm³.
The rope is highly durable with 10‑year resistance to aging and chemicals. It is anti‑corrosive, weather‑resistant (up to –60°C), and weldable. The rope shows strong performance with static bending load resistance of 6 kN, joint strength of 25.96 kN, and breaking strength of 36 kN. No visible defects were observed. Total weight is approximately 0.25 kg.

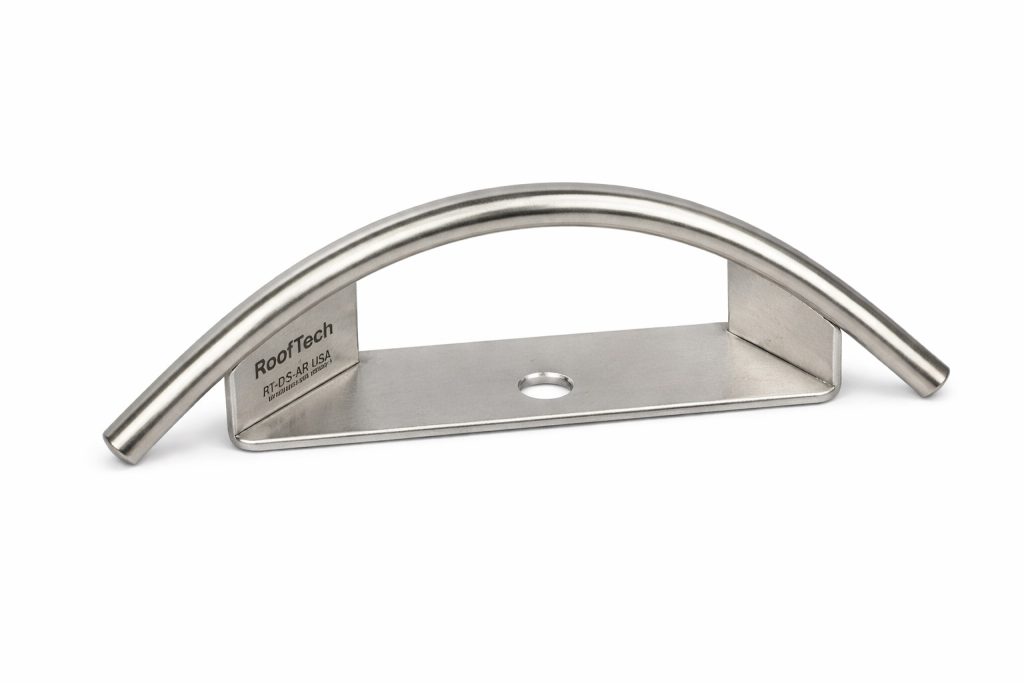

The Corner Bracket is made from Stainless Steel 304 with a height of 70 mm, a 40×5 mm strip, and an 8.75×12 mm pipe. It complies with EN 795 standards and has a material density of 8.03 g/cm³.
The product is designed for long‑term durability with 10‑year resistance to aging and chemical exposure. It is anti‑corrosive, weldable, and withstands cold and weather conditions (up to –60°C). Performance tests show static bending load resistance of 6 kN, joint strength of 25.96 kN, and breaking strength of 25.23 kN. No visible defects were found. Weight ranges from 0.9 to 1.2 kg.
